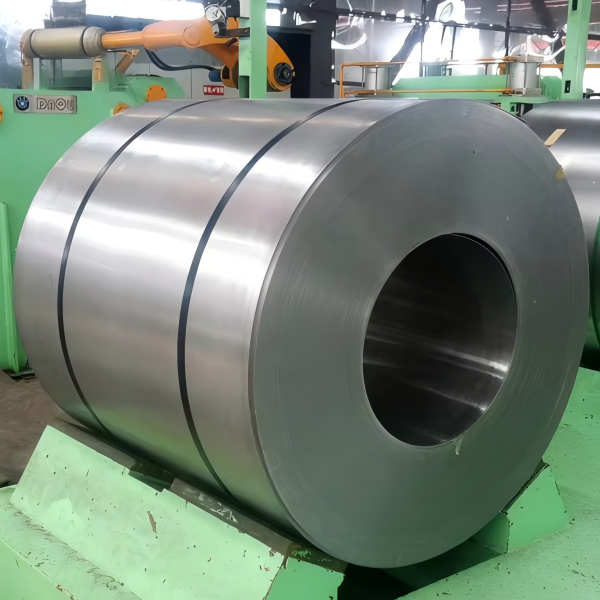

DC01/DC02/DC03/DC04 Cold Rolled Steel Coil

DC01, DC02, DC03, and DC04 cold rolled steel coils are a series of low-carbon, high-quality steel products manufactured to European standards, offering progressively enhanced formability and surface finish. These grades are produced through precision cold rolling to achieve tight dimensional tolerances and excellent mechanical properties for various forming applications .

Product Parameters

Thickness: 0.2mm to 3.0mm (cold rolled range)
Regular thicknesses: 0.5mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm
Width: 600mm to 1500mm (regular widths: 1000mm, 1219mm, 1250mm)
Coil Inner Diameter: 508mm or 610mm
Coil Weight: 3-15 tons (customizable)
Processing Technique: Cold Rolled, Annealed, Skin Passed
Standard: EN 10130, DIN 1623
Packaging: Standard export seaworthy packaging (inner moisture-proof paper, plastic film, outer galvanized steel sheets with steel strips)
Surface Treatment: Bright finish, matte finish, oiled, dry, or as per request

Chemical Composition (Typical %)

DC01:
Carbon (C): ≤0.12
Manganese (Mn): ≤0.60
Phosphorus (P): ≤0.045
Sulfur (S): ≤0.045

DC02:
Carbon (C): ≤0.10
Manganese (Mn): ≤0.45
Phosphorus (P): ≤0.035
Sulfur (S): ≤0.035

DC03:
Carbon (C): ≤0.08
Manganese (Mn): ≤0.40
Phosphorus (P): ≤0.030
Sulfur (S): ≤0.030

DC04:
Carbon (C): ≤0.08
Manganese (Mn): ≤0.40
Phosphorus (P): ≤0.030
Sulfur (S): ≤0.030

Physical Properties

DC01:
Yield Strength: ≤280 MPa
Tensile Strength: 270-410 MPa
Elongation: ≥28%

DC02:
Yield Strength: ≤240 MPa (max)
Tensile Strength: 270-370 MPa
Elongation: ≥34%

DC03:
Yield Strength: ≤240 MPa
Tensile Strength: 270-370 MPa
Elongation: ≥34%

DC04:
Yield Strength: ≤210 MPa
Tensile Strength: 270-350 MPa
Elongation: ≥38%

Product Applications

DC01 is suitable for simple forming operations such as bending, embossing, beading, and basic drawing applications.
DC02 is designed for general drawing applications requiring improved formability over DC01.
DC03 is intended for deep drawing applications and complex profiles requiring good formability.
DC04 is ideal for high deformation requirements, deep drawing of complex parts, and applications demanding excellent surface quality and superior formability.
